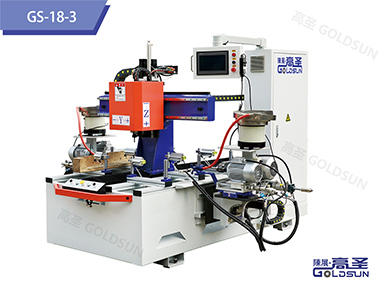

Solid wood bed column milling groove drilling and tapping machine

Detail

Introduction: This product is designed for milling grooves, drilling, and tapping on solid wood bed posts, including drilling positions for mattress height adjustment and automatic screw driving, ensuring high efficiency and precision.
Efficiency: 200 beds/8 hours.

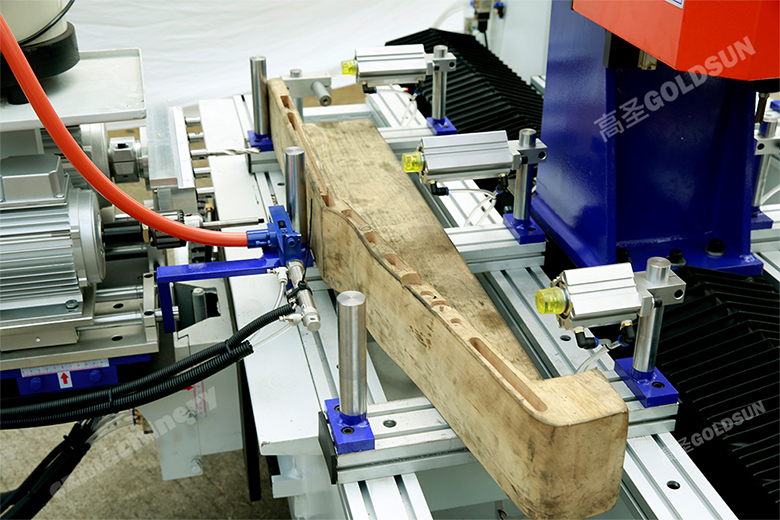

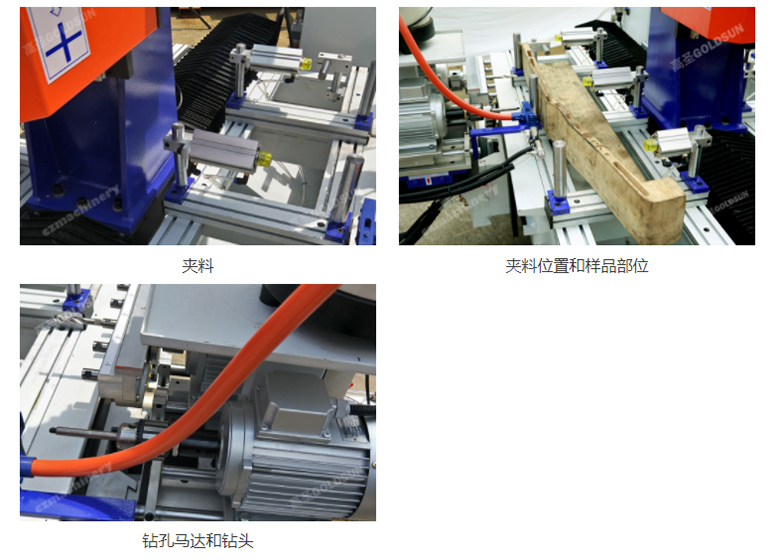

1. Automatic feeding with precise positioning; the machine sequentially performs milling, drilling, and tapping functions for high efficiency;
2. Convenient and simple adjustment of feeding stroke;
3. Equipped with a high-quality spindle motor for smooth performance, long service life, and low failure rate;
4. Top-tier international electrical control system with an inverter and high-quality servo drivers ensure smooth machine operation.
5. User-friendly system operation and easy machine adjustment.

Servo Motors: X-axis 750w, Y-axis 750w, Z-axis 400w, U-axis 750w, V-axis 750w
Milling Motor: 2.2kw x 1
Drilling Motor: 2.2kw x 2
Machine Dimensions (L x W x H): 2500 x 2000 x 1900mm
Weight: 1000kg
