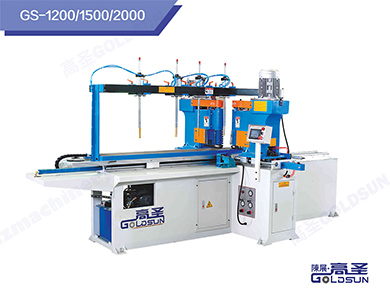

Automatic imitation-type machine GS-150

Detail

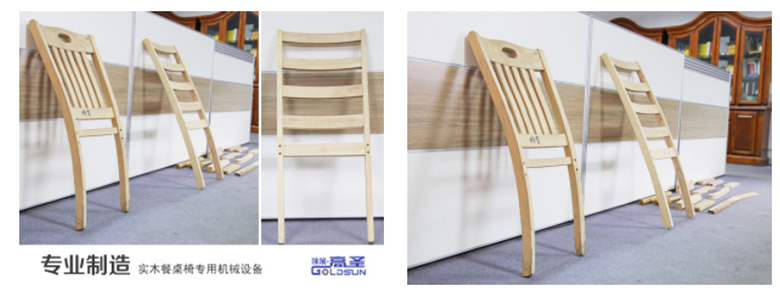

Introduction: Precise and smooth operation, simple and easy to use. The machine replaces manual labor for chair back copying, sawing, and sanding. Available in three models based on processing length: GS-1200, GS-1500, and GS-2000. Greatly improves efficiency and output. Easy to debug, simple to operate and train.
Work Efficiency: Capable of completing up to 4 workpieces per minute, with an 8-hour shift output of nearly 2000 pieces.

1. The machine sequentially performs copying, sawing, and sanding functions for high efficiency;
2. Equipped with high-quality motors, stable performance, long lifespan, and low failure rate;
3. Convenient operation and easy machine adjustment.

Model	GS-1200	GS-1500	GS-2000
Servo Motor	750w	750w	750w
Spindle Power	7.5hp×2	7.5hp×2	7.5hp×2
Spindle Diameter	35mm	35mm	40mm
Spindle Speed (turn/minute)	8000	8000	8000
Processing Length	1200mm	1500mm	2000mm
Processing Height	150mm	150mm	200mm
Processing Width	25-300mm	25-300mm	25-300mm
Machine Dimensions	3000×1800×1800mm	3800×1800×1800mm	4500×1800×1800mm
