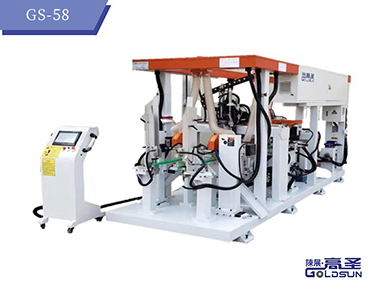

Front leg forming machine for dining chairs: GS-58

Detail

Introduction: Operates with precision and fluency. Simple and convenient to operate. Equipped with automatic feeding and unloading, the machine replaces manual labor for dual cutting, slotting, drilling, and beveling of chair legs, greatly enhancing efficiency and output. Quick debugging, easy to learn and train.
Work Efficiency: Can complete up to 4 workpieces per minute, capable of finishing nearly 2000 workpieces within an 8-hour shift.

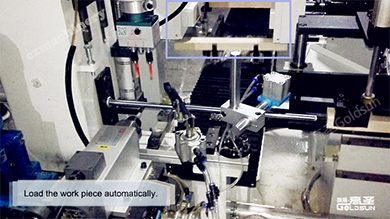

1. Automatic feeding with precise delivery. The machine sequentially performs dual cutting, slotting, drilling, and beveling functions for high efficiency;
2. Feed stroke adjustment is convenient and simple;
3. Equipped with high-quality motors, ensuring stable performance, long lifespan, and low failure rate;
4. System operation is user-friendly, making machine setup quick and easy.

Servo Motor: 400w
Sawing Motor: 1.5kw×2
Drilling Motor: 1.5kw×2
Slotting Motor: 2.2kw×1800 RPM
Beveling Motor: 3.7kw×1200 RPM
Machine Dimensions: 2200×2000×1600mm
Machine Weight: Approx. 1500kg
