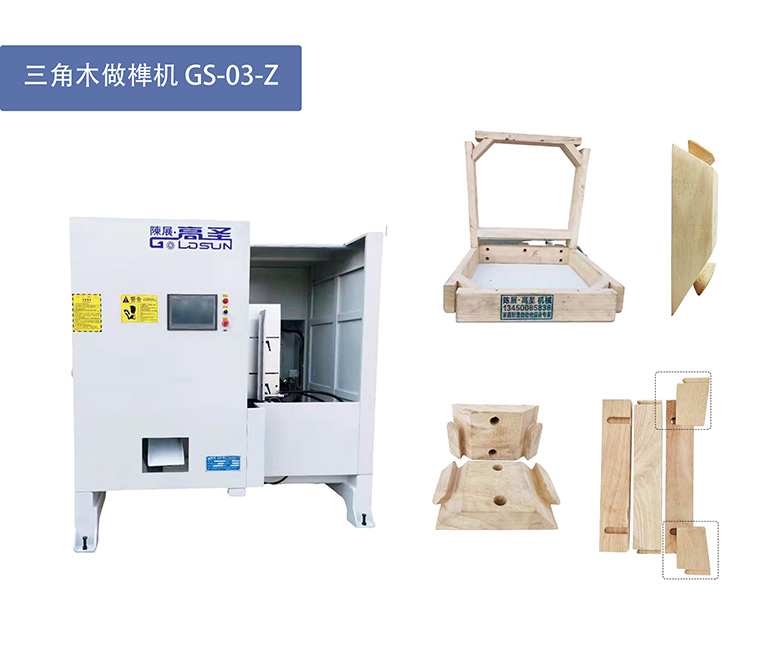

Product Name: Dowel Tenoning Machine
Model: GS-03-Z

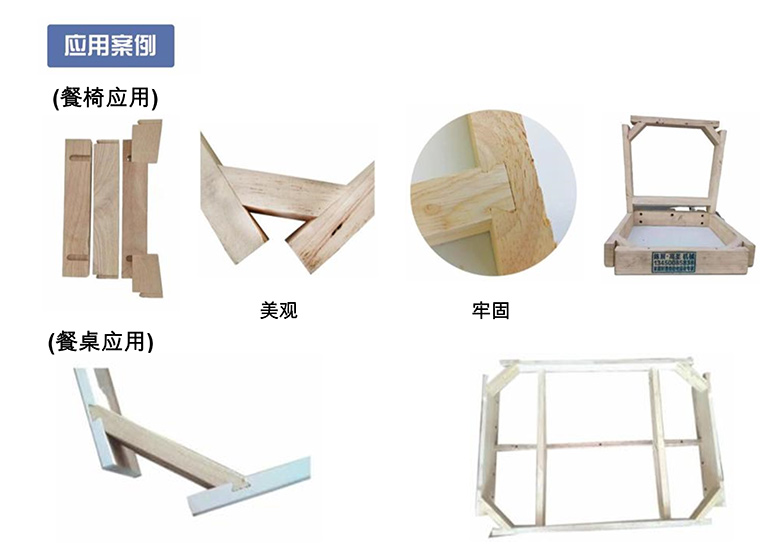

2021 New Generation Dining Chair Seat Frame Structure: Strong, Aesthetic, and Labor Cost Efficient
1. New dovetail tenon structure for higher strength;
2. Eliminates the need for screws, reducing costs;
3. Enables automated assembly.
Patent Number: 202022278420.X
Product Description: Automated operation effectively replaces manual labor, ensuring high efficiency and safety while doubling productivity.
Function: Tenoning for dowel tenons
Parameters: Sawing Motor: 1.5kw x 2
Drilling Motor: 1.1kw × 1
Tenoning Motor: 3.7kw × 2
Servo Motor: 1kw × Driving 3
Processing Dimensions: Length: 80-220mm
Width: 60-150mm
Thickness: 20-25mm
Machine Dimensions (mm): 1800 x 1600 x 1800
Weight: 1000kgs
Efficiency: Approx. 6 pieces/minute

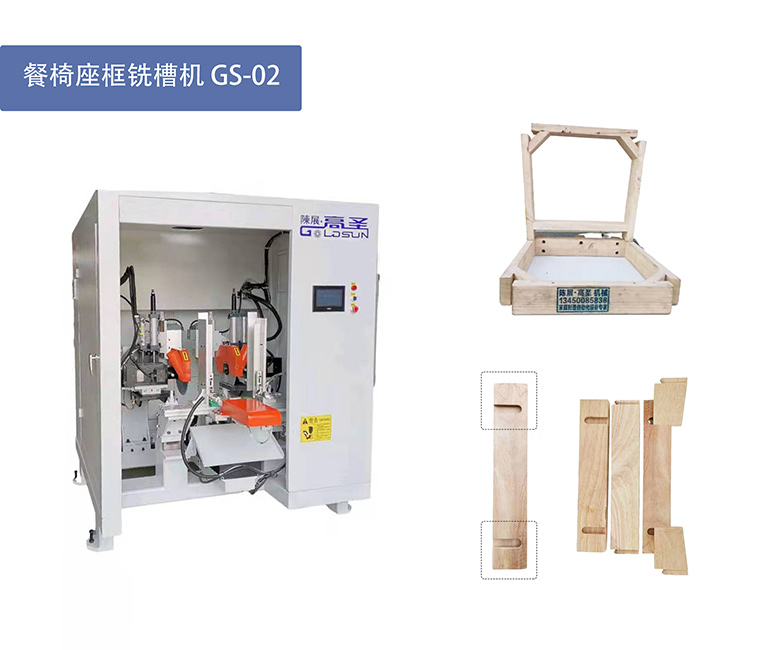

Compatible Machinery: Dining Chair Seat Frame Slotting Machine
