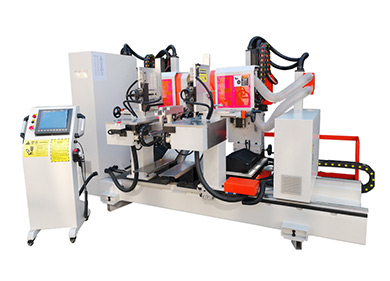

Full CNC double-end slotting machine for making mortises

Detail

Name: Full CNC Double-End Slotting and Tenoning Machine
Brand Name: Chen Zhan · Goldsun
Model: GS-26-F-M
Series: Dowel Insertion / Tenoning Machine Series
Function Introduction: Designed for furniture manufacturing to process slots and tenons on table & chair legs, beds, door frames, etc.

Full CNC control for efficient production and one-key machine adjustment; memorizes 2000 sets of product data, switching products during production takes only 3 minutes;

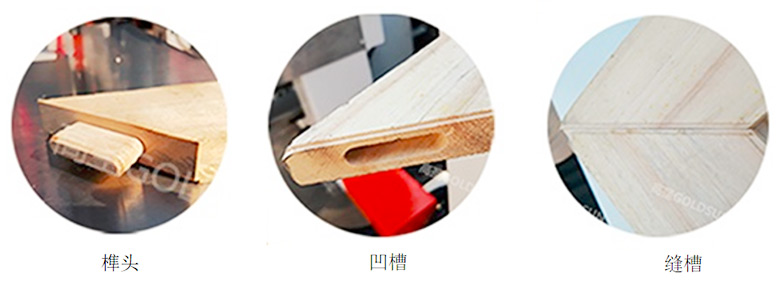

Double-end simultaneous slotting and tenoning, combining 2 functions into one machine, providing an all-in-one solution for male and female tenons.

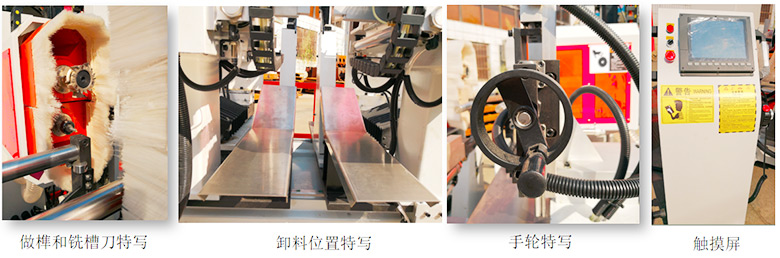

High-quality servo motors, ball screws, and guides with an excellent control system ensure stable and safe operation;

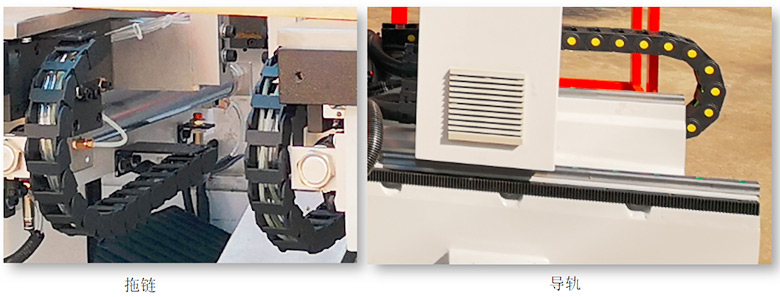

Features a unique dust-proof cover and dust-proof guides to prevent wood chip splashing.

ModelGS-26-F-M

Control System BrandTaiwan Etu

Servo BrandTaiwan Etu

Screw BrandHIWIN and TBI

Guide Rail BrandSan Huan Dust-Proof Type

Tenoning Motor5.5KWx2

Servo Motor1KWx4

Cornering Motor400Wx4

Width Adjustment Motor400Wx1

Slotting Motor2.2KWx2

Slotting In/Out Motor400Wx2

Feeding Servo400Wx2

Effective Processing Length (Customizable)280-2000mm (When at 45°, shortest is 500mm; When at 90°, single-arm feeding can do 180mm)

Effective Processing Width (Customizable)Within 150mm

Effective Processing Thickness (Customizable)Within 80mm

Machine Dimensions4000x2200x2000mm

Efficiency3~4 pieces/minute

Weight2500KG

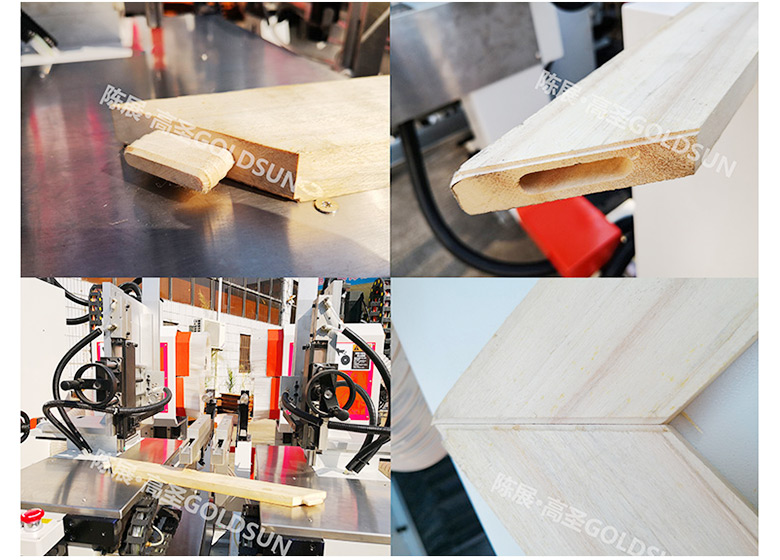

Four spindles in operation, integrating tenoning and slotting functions into one; double-end simultaneous sequential completion of slotting and tenoning; full CNC one-key adjustment; capable of 45-degree angle processing with automatic same-side loading and unloading
