Automatic Seat Cushion Stapling | One Wire Coil for Mass Production

Precise computer spacing adjustment, automatic stapling & rotation

Labor-saving, cost-effective, uniform & flawless finished products

60~90-second fast molding, stable and efficient, empowering factory intelligent upgrading

Ganzhou Chenzhan Woodworking Machinery Co., (GOLDSUN Machinery)

Contact: Ms. Ashlee Chen

E-mail: ashleechen@cncgoldsun.com

Mobile: +86 13631750311

Product Overview

This automatic seat cushion stapling machine is a professional automated equipment specially developed for chair and sofa seat cushion stapling. It completely replaces traditional manual stapling processes and solves industry pain points such as low efficiency, high labor cost, irregular nailing position and uneven finished products in manual operation.

With a high degree of automation and simple operation, the machine supports standardized mass production. It is an essential intelligent equipment for furniture factories to reduce costs, improve efficiency and upgrade product quality.

Video: https://www.youtube.com/watch?v=5HcfG9SI2XE

https://youtu.be/5HcfG9SI2XE?is=UGHta2vNXLt4TGQv

Seat Cushion Automatic Stapling Machine (Single station) Model: JL-50A

Seat Cushion Automatic Stapling Machine (Dual -station) Model: JL-50A-2

Core Working Principle & Technical Parameters

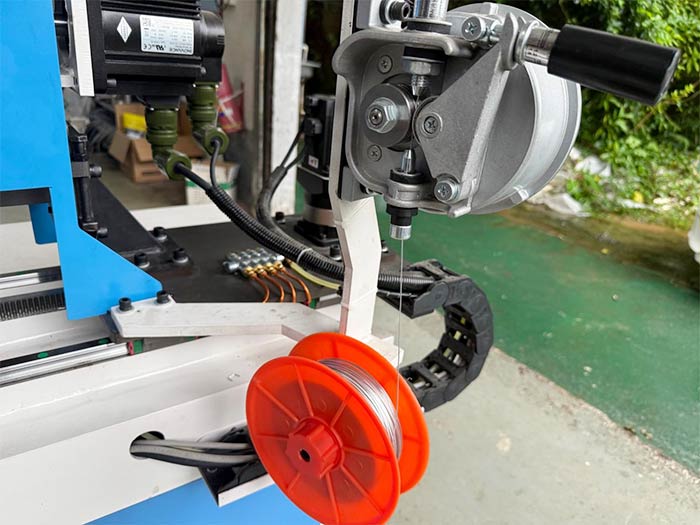

Adopting single-coil wire nailing technology, the machine only needs one coil of special iron wire to automatically form staples and complete accurate stapling according to production requirements.

Equipped with an intelligent computer control system, it freely adjusts staple spacing, stapling speed and rotation angle. The whole process of stapling and rotating is fully automatic. Workers only need to complete simple loading and unloading work.

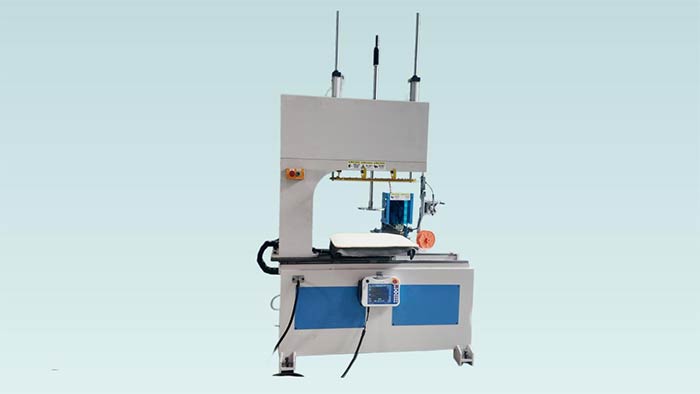

Seat Cushion Automatic Stapling Machine (single station)

Model: JL-50A

JL-50A

Working Range: 300-500mm

X-axis servo: 0.75KW

Y-axis servo: 0.75KW

Rotary servo: 0.75KW

Nail driving servo: 1.3KW

Total power: 3.55KW

Machine Dimensions（L*W*H)：1460*1280*2270mm

Mechanical weight: 800kg

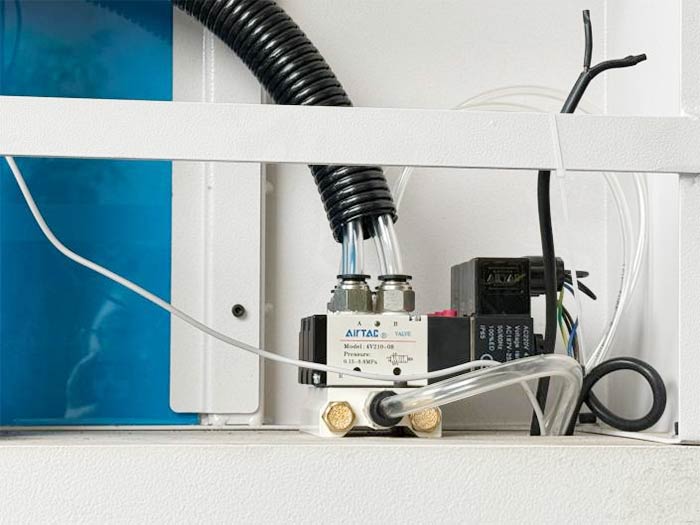

The spare parts are equipped with high quality brands, the servo motor is INOVANCE brand, the electrical components are from Schneider Electric, and the pneumatic components are from AirTAC.

Remark: Stapling with steel wires. One coil (950 meters) is about 2.5KG, which can produce 270 seat cushions, the size of steel wire is 1.2mm*6mm, one coil of steel can make 30,000 staples.

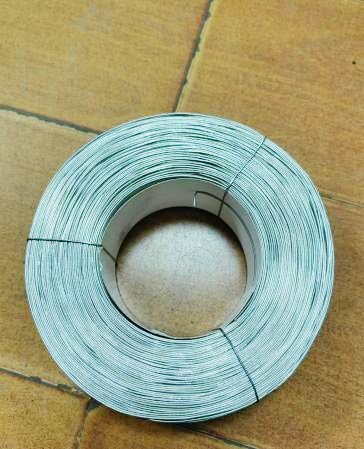

(One coil of steel wire)

(The nail’s size as showed, the distance of nails can be set)

Stapling time depends on the number of staples you need.

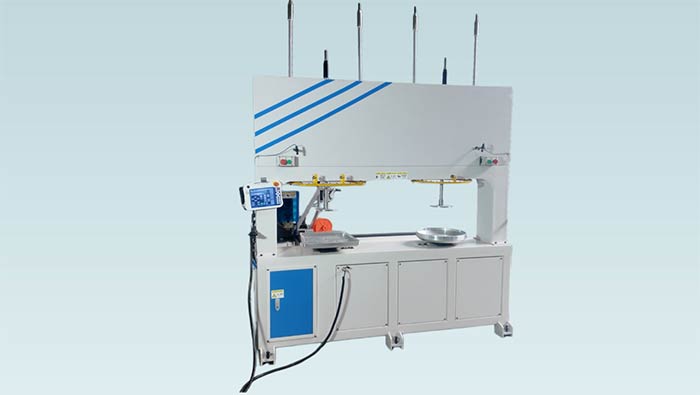

Seat Cushion Automatic Stapling Machine (Dual -Station)

Model: JL-50A-2

Working Range: 300-500mm

X-axis servo: 0.75KW

Y-axis servo: 0.75KW

Rotary servo: 0.75KW*2

Stapling driving servo: 1.3KW

Total power: 4.3KW

Machine Dimensions（L*W*H): 2200*1700*2270mm

Mechanical weight: 1150kg

With 2 station, it fits with 2 different molds of seat cushion.

(These molds are non-adjustable. If customer requires production for different seat base sizes in the future, additional molds can be ordered separately. We will provide a quotation for extra molds based on the specific dimensions and complexity required.)

Core Parameters:

1. Consumable capacity: One coil of wire can produce 30,000 staples continuously.

2. Production efficiency: One seat cushion can be finished in 90 seconds (adjustable according to cushion size); 40–60 pieces per hour, 320–400 pieces per 8-hour working day.

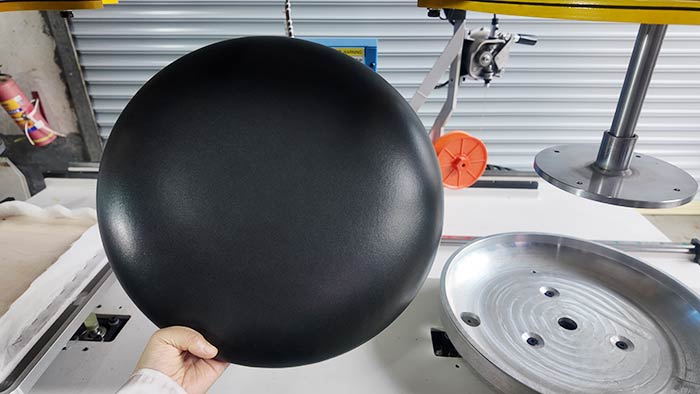

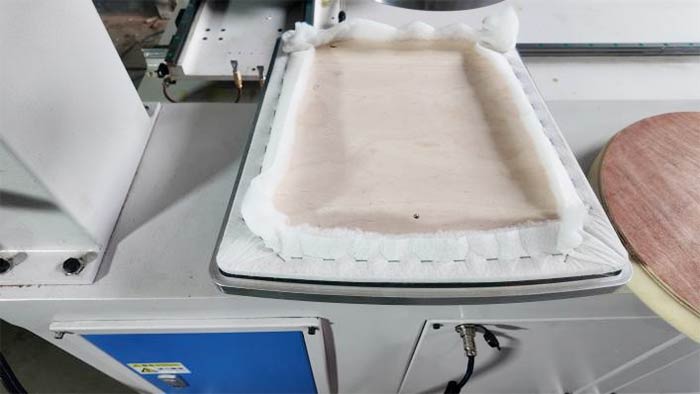

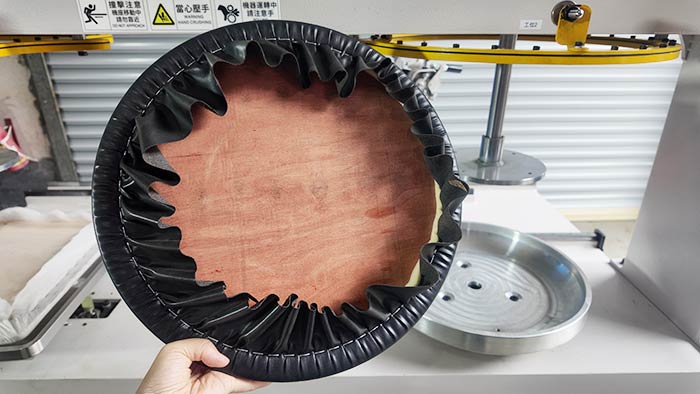

(finished samples)

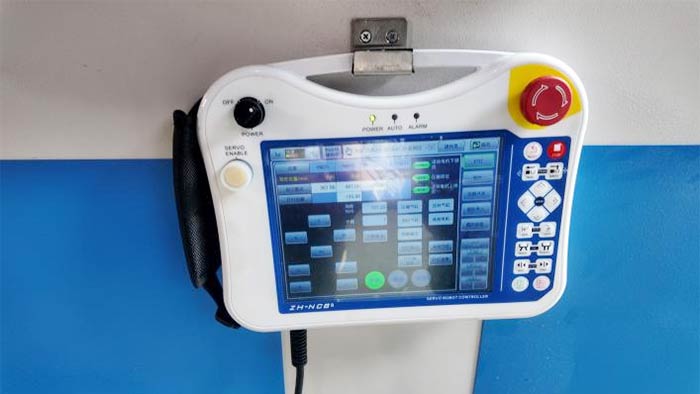

(Operational screen)

Manual Stapling VS Automatic Machine Stapling (Advantage Comparison)

Disadvantages of Traditional Manual Stapling:

• Low efficiency: Output is unstable due to manual fatigue and proficiency, unable to support mass orders.

• High labor cost: Reliant on skilled workers, with difficult recruitment and rising labor expenses.

• Non-standard finished products: Uneven staple spacing, inconsistent depth and skewed nailing cause defective products.

• Poor consistency: Different operation standards lead to inconsistent product appearance, affecting brand reputation.

• High waste rate: Frequent missing nails, repeated nails and offset nails result in rework and material loss.

Advantages of our Automatic Stapling Machine:

• Labor Cost Saving: One machine replaces multiple workers. Only one worker is needed for loading and unloading, greatly reducing long-term labor costs.

• High & Stable Efficiency: Far higher output than manual work, stable mass production, shorter delivery time.

• Perfect & Uniform Finishing: Computer precise positioning ensures consistent staple spacing and depth. No skewed, missing or repeated nails. All products are neat and high-end.

• Standardized Production: Preset parameters are not affected by worker fatigue or proficiency, realizing 100% standardized production.

• High Return on Investment: Low consumable loss and almost zero defective rate, effectively reducing waste and rework cost.

Our Core Product Advantages:

1.Easy Operation: Automatic stapling and rotation with adjustable parameters, easy for new workers to operate.

2.Precise stapling ans smooth operation: The machine is equipped with positioning devices to ensure more accurate stapling and prevent material displacement.

3. High Production Capacity: Stable output to meet mass production needs of furniture factories.

4. Cost Reduction & Quality Improvement: Equip with nail making, stapling spare parts. Save labor and materials, reduce defective rate, unify product appearance.

5. High class spare parts brand: The spare parts are equipped with high quality brands ans stable performance, the servo motor is INOVANCE brand, the electrical components are from Schneider Electric, and the pneumatic components are from AirTAC.

6. Wide Compatibility: Suitable for various sizes of chair and sofa seat cushions as long as the seat cushion’s surface is flat.

Our company

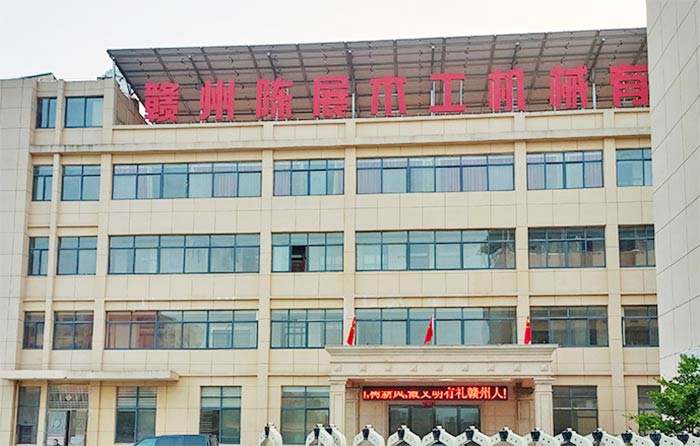

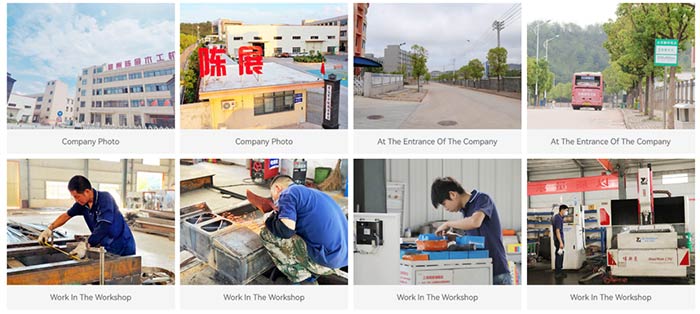

Ganzhou Chenzhan Woodworking Machinery Co., Ltd. is an enterprise that specializes in the research and development, production, and sales of CNC automated furniture production equipment, and has the right for independent import and export. Our company is based in Ganzhou city, Jiangxi province. Currently, it holds over twenty independent patents. The product brand is "GOLDSUN".

We have become a technology-based enterprise for 20 years and was recognized as a high-tech enterprise in 2021. It is an enterprise with professional R&D, production and sales of CNC automated furniture equipment, and has the right of independent import and export. Its products are mainly CNC automated mechanical equipment.

The automation equipment replaces manual labor, aiming to enhance the production efficiency of customers and reduce labor costs. The products can complete tasks such as drilling, tapping, profile sanding, milling, cutting, dovetails making, and tenon planting on solid wood dining tables and chairs, coat racks, solid wood beds, cabinet, wooden floor, etc. The products cover 5 major series: CNC slotting machine series, drilling/tapping machine series, tenon planting glue inserting machine series, dining chair multi-functional machine series, and imitation type machine series.

Our company also have a factory in Dongguan city, Guangdong Province, this factory mainly produce Seat Cushion/Bed Slats Stapling Machine.
